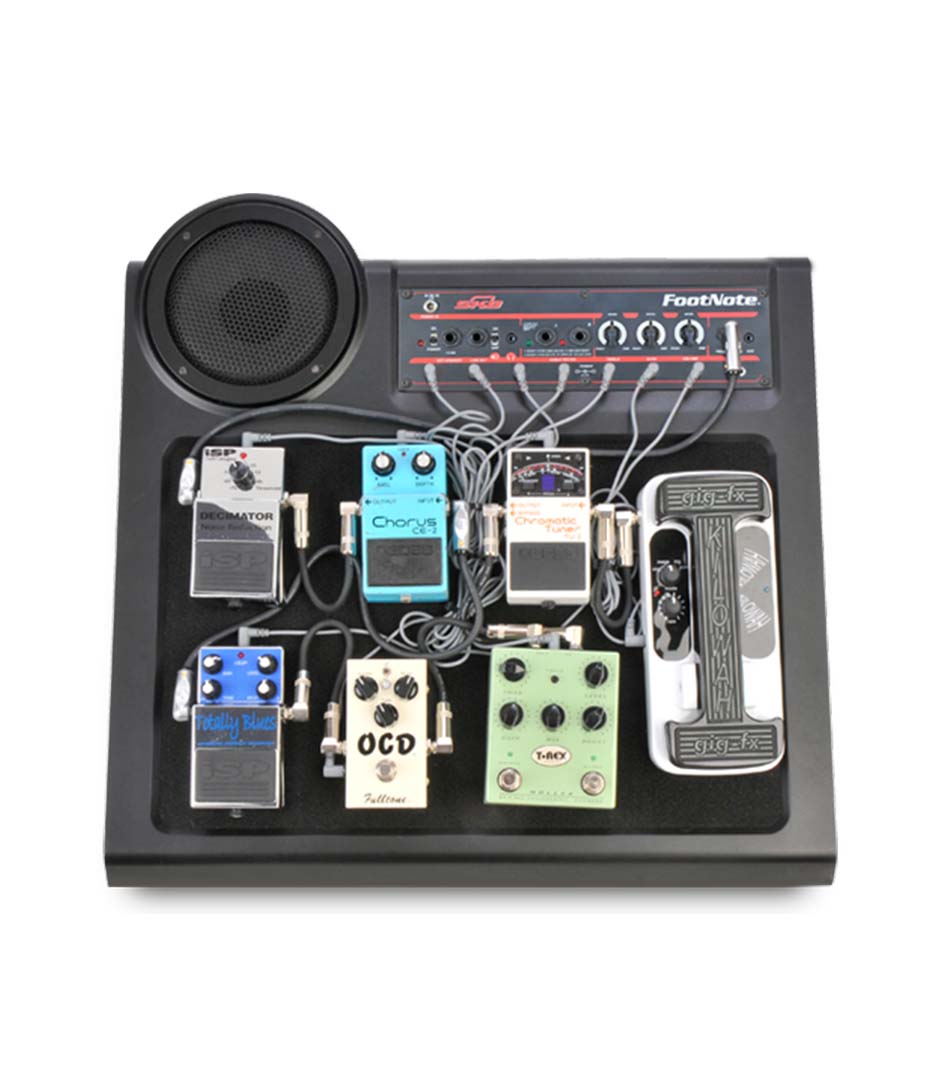

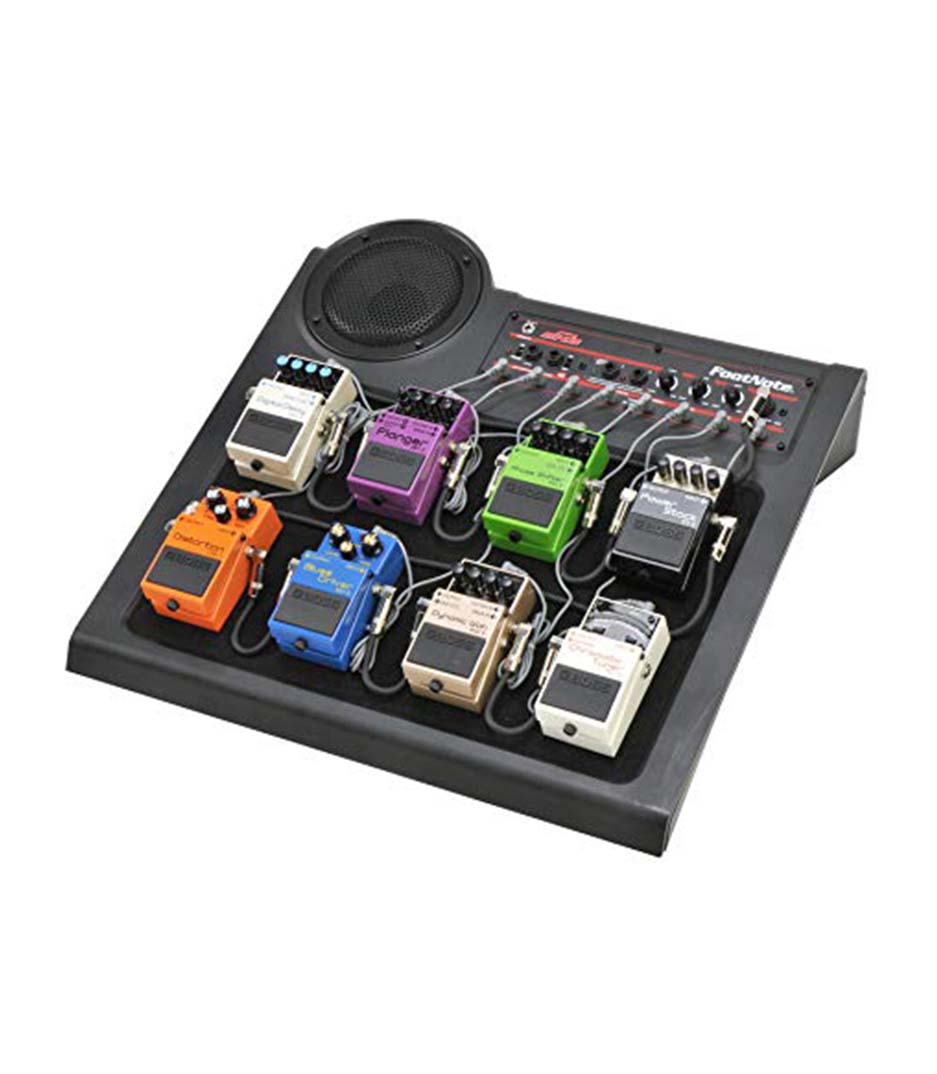

SKB Powered Pedalboard

The 1SKB-FN-8 FootNote is the very first amplified pedalboard. Featuring a built-in 5W combo amp and a 6″ Eminence speaker, the 1SKB-FN-8 FootNote is like no other pedalboard on the market.The injection molded pedalboard features a 9″ x 12″ mounting surface which is sloped for easier access to the rear pedals and the 1SKB-FN-8 FootNote can power up to (8) 9VDC battery powered pedals with the supplied power cables. Additionally, the FootNote features a 1 / 8″ AUX / MP3 stereo line input for external audio playback and incorporates the same cable tester found on the 1SKB-PS-55 StageFive Professional pedalboard. Included is a Headphone Output for monitoring or silent practice and a Line Out that is ideal for live or recording use. The convenient internal speaker on/off switch is independent of the Line Out and Headphone Output modes for maximum flexibility. One of the most unique features is the Speaker Out that allows the FootNote to drive an external 4 ohm speaker load. The FootNote can run on AC with the supplied thermal protected power supply or DC power using 6 D-Cell batteries (batteries not included).The most versatile pedalboard on the market, the 1SKB-FN-8 FootNote is great whether on stage, at home, at a park or on a tour bus..

  • Brand
  • Category
  • Model
  • SKB
  • Guitars , Guitar Accessories
  • 1SKB-FN-8UK

Specification

Connectors & Switches Power-In Jack; Power On/Off Switch; External Speaker Jack; Line Out Jack; Speaker On/Off Switch; Headphone Jack; Pedal Power Jacks; Cable Tester Jack (A); Cable Tester Jack (B); Treble Knob; Bass Knob; Volume Knob; Pedal / Guitar J
Combo Amp 5-Watt Class AB Amplifier with 6-inch 4 ohm Eminence Speaker.
AUX / MP3 Input 1/8" input (3.5mm) to connect an additional audio source such as mp3 players and monitor signals.
Line Out Connect Hi-Z output directly to a live mixing board or studio recording console. Use a DI box if Lo-Z output is required.
External Speaker Output Capable of handling speaker loads down to 4 ohms. Connect to your favorite 1, 2 or 4x12 cab.
AC Adapter 1A 9VDC center negative AC adapter included.
Headphone Output 1/8" output jack (3.5mm).
Cable Tester Checks 1/4" audio / instrument cables to ensure that they are in good working order.
Speaker On/Off Switch Turns built-in speaker on or off. This switch does not have any effect when the External Speaker Jack is in use.
