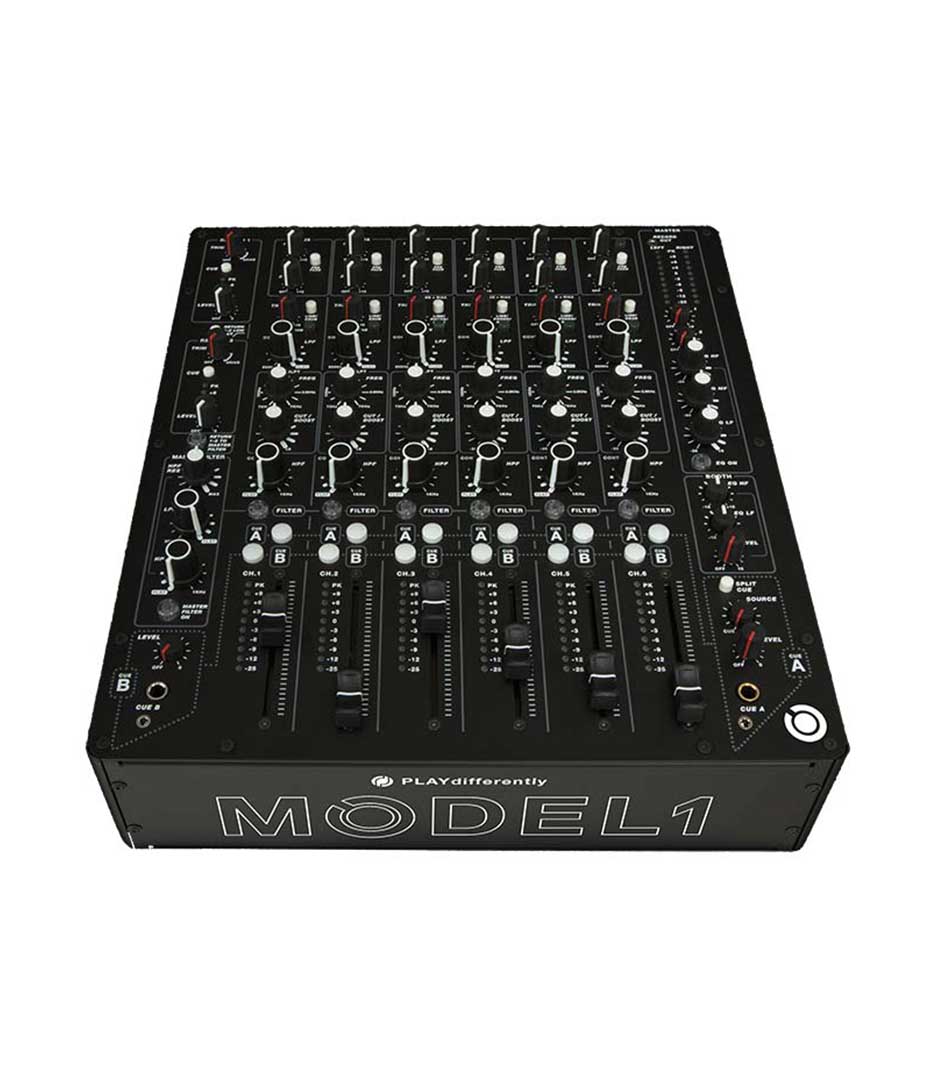

Play Differently DJ Mixer- Model 1

MODEL 1 has a unique offering of six fully featured input channels plus two stereo returns in a small format frame. It has many features not currently available on any comparable device, such as Input pre-amplifier drive control, hybrid filter/swept bell EQ, dual cue system, dual mixer linking system, and a fully balanced Tascam DB25 connector system..

  • Brand
  • Category
  • Model
  • DJ Gear , Mixers
  • Model1

Find Alternatives

Specification

Channels 6
Effects Analog Overdrive, Resonant Filter

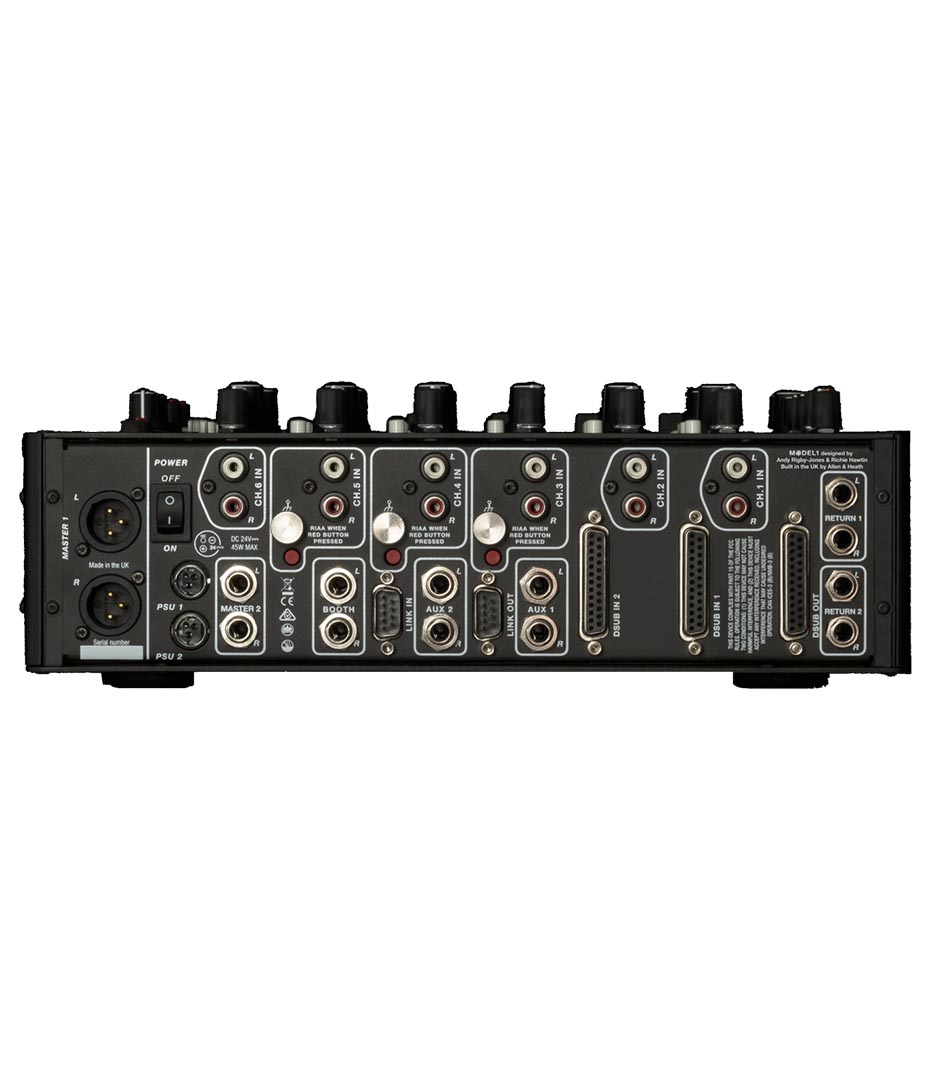

Analog Inputs 6 x Dual RCA Stereo (line/phono), 2 x DB-25 (Tascam 8 channel) Analog Outputs - 1 x DB-25 (Tascam 8 channel), 1 x 1/8" (record out), 2 x XLR (master), 2 x 1/4" (master 2), 2 x 1/4" (booth)
Headphones 2 x 1/4", 2 x 1/8"
Other I/O 2 x DB-9 (mixer link in/out), 2 x Stereo Send/Returns
Faders 6 x 60mm TKD faders
EQs 6 x low/high pass filters, 6 x freq select with cut/boost, 3-band master EQ, 2-band booth EQ
Power Source 24V DC power supply (included), dual power supply inputs
Dimensions Height - 4.09", Width - 12.6", Depth - 14.49", Weight - 11.9 lbs.
