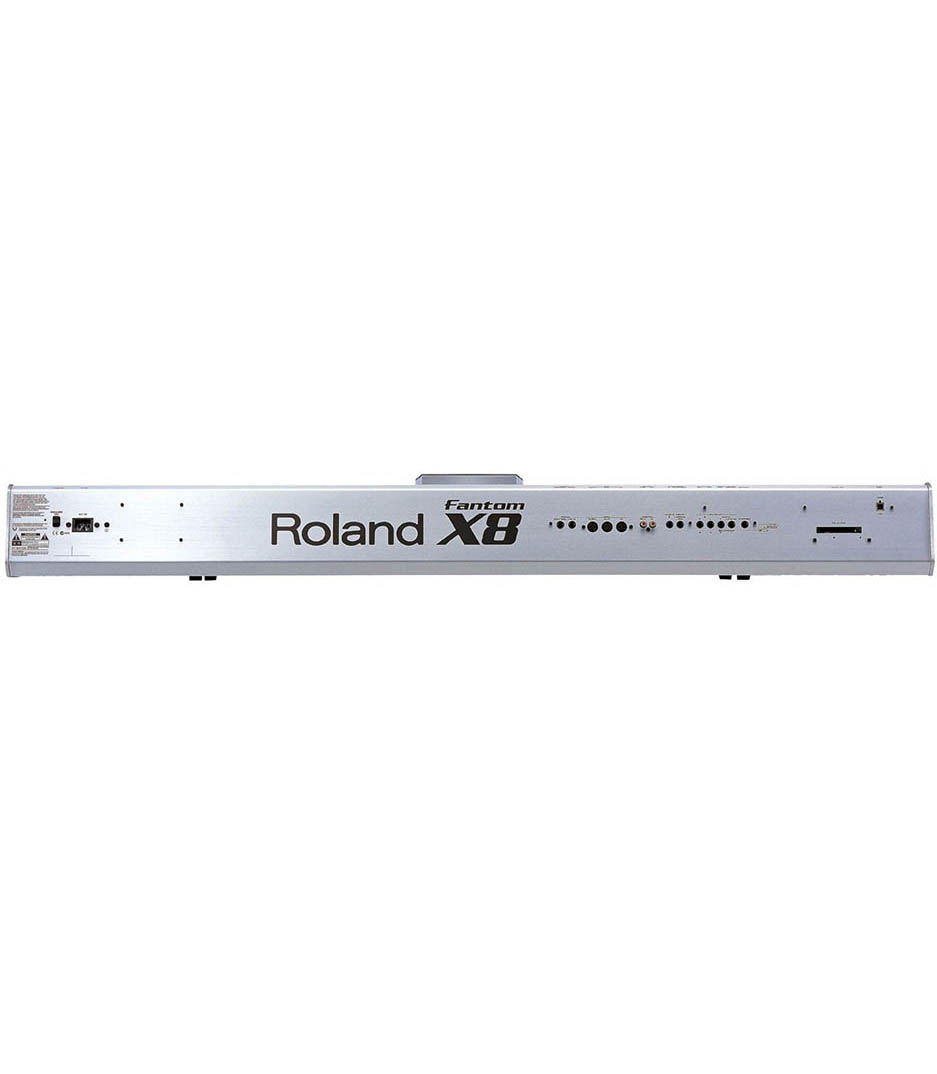

Roland Fantom X8

The Fantom-X Series is the flagship of the Roland workstation family, offering musicians nearly 1GB of wave memory when fully expanded, and 128-voice performance. At the top of the vast soundset is Roland's finest 88-key split stereo-sampled piano, with each note individually sampled at multiple velocities. In addition, the Fantom-X provides room for four SRX expansion boards, so users can customize their soundsets to their specific needs and stylistic preferences.

The Fantom-X Series is the first line of workstation keyboards with a color LCD screen. Combined with an inviting icon-driven user interface, the Fantom-X has been globally heralded as the most powerful-yet-friendly workstation on the market.

  • Brand
  • Category
  • Model
  • Keys, Workstations
  • Fantom X8

Find Alternatives


Keyboard 88 keys (Progressive Hammer action Mechanism and channel aftertouch)
Sound Generator Section Maximum Polyphony - 128 voices
Standard Wave Memory - 128 M bytes (16-bit linear equivalent)
Standard Waveforms - 1,480
Preset Memory, Patches - 1,152+ 256 (GM2)
User Memory 256 patches
Sampling Section Data Format - 16-bit linear (.WAV/.AIFF)
Frequency - 44.1 kHz (fixed)
Maximum Time - Standard (32 MB)
Number of Samples - User memory, 2,000
Effects Multi-Effects - 3 systems, 78 types
Sequencer Section Tracks - Phrase tracks (16 MIDI channels per track) - 16
Resolution - 480 TPQN
Tempo - 5 - 300
Note Capacity - approx. 400,000 notes
Song Length - 9,998 measures
Recording Method - Realtime recording, Step recording
Others Arpeggiator - Preset - 128
Rhythm Pattern - Preset - 256 (32 groups)
Chord Memory - Preset - 64
Display - Graphic 320 x 240 dots backlit LCD (Color)
Dynamic Pads - 16 pads, Velocity and Aftertouch sensitive
Controllers Pitch Bend/Modulation Lever
Expansion Slots Expansion of waveforms and patchs for the internal sound generator, External Storage Device - PC card - 1 slot (supports SmartMedia and CompactFlash using a PC card adapter)
Connectors Headphones Jack
